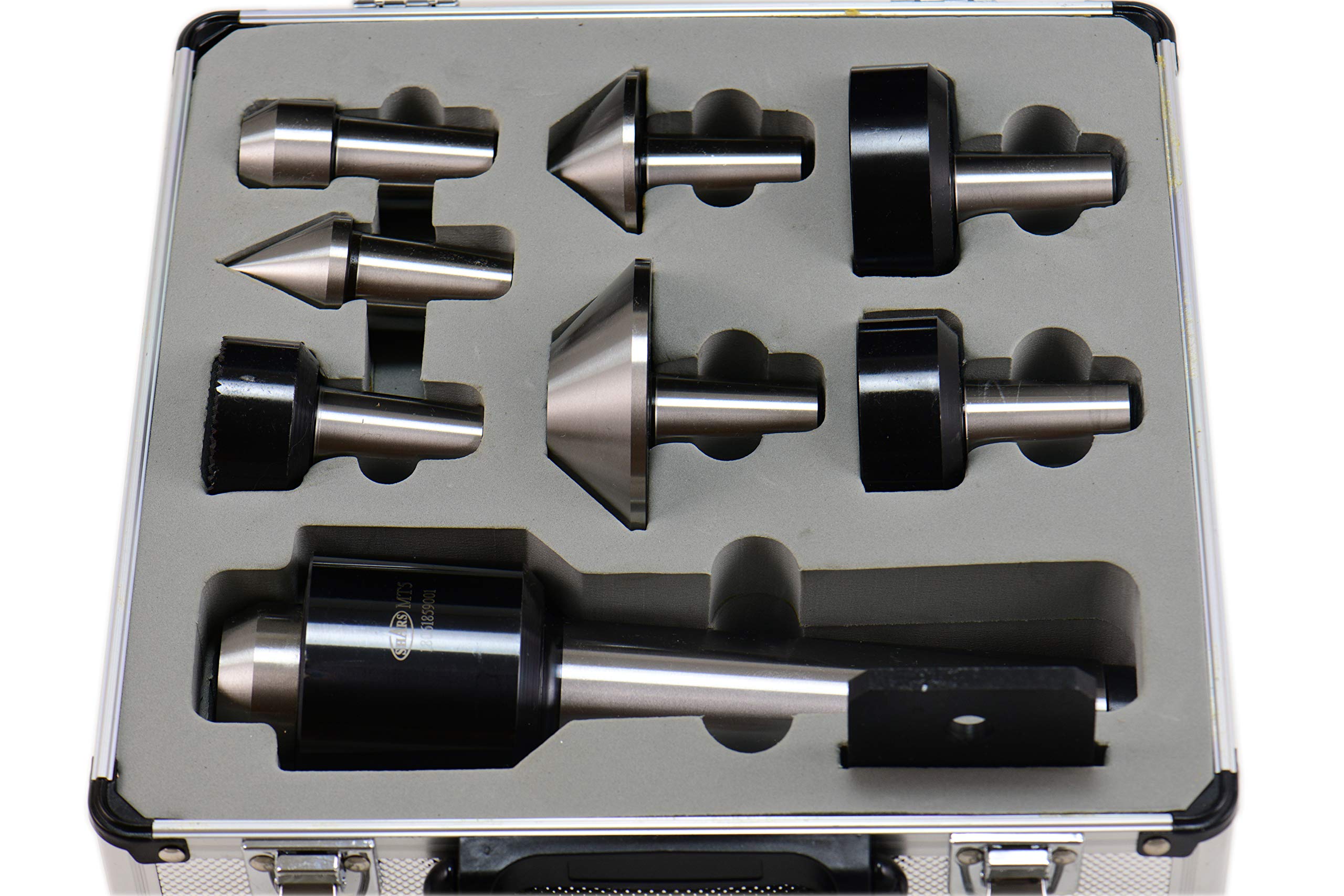

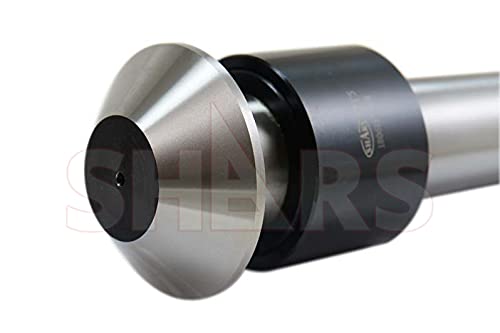

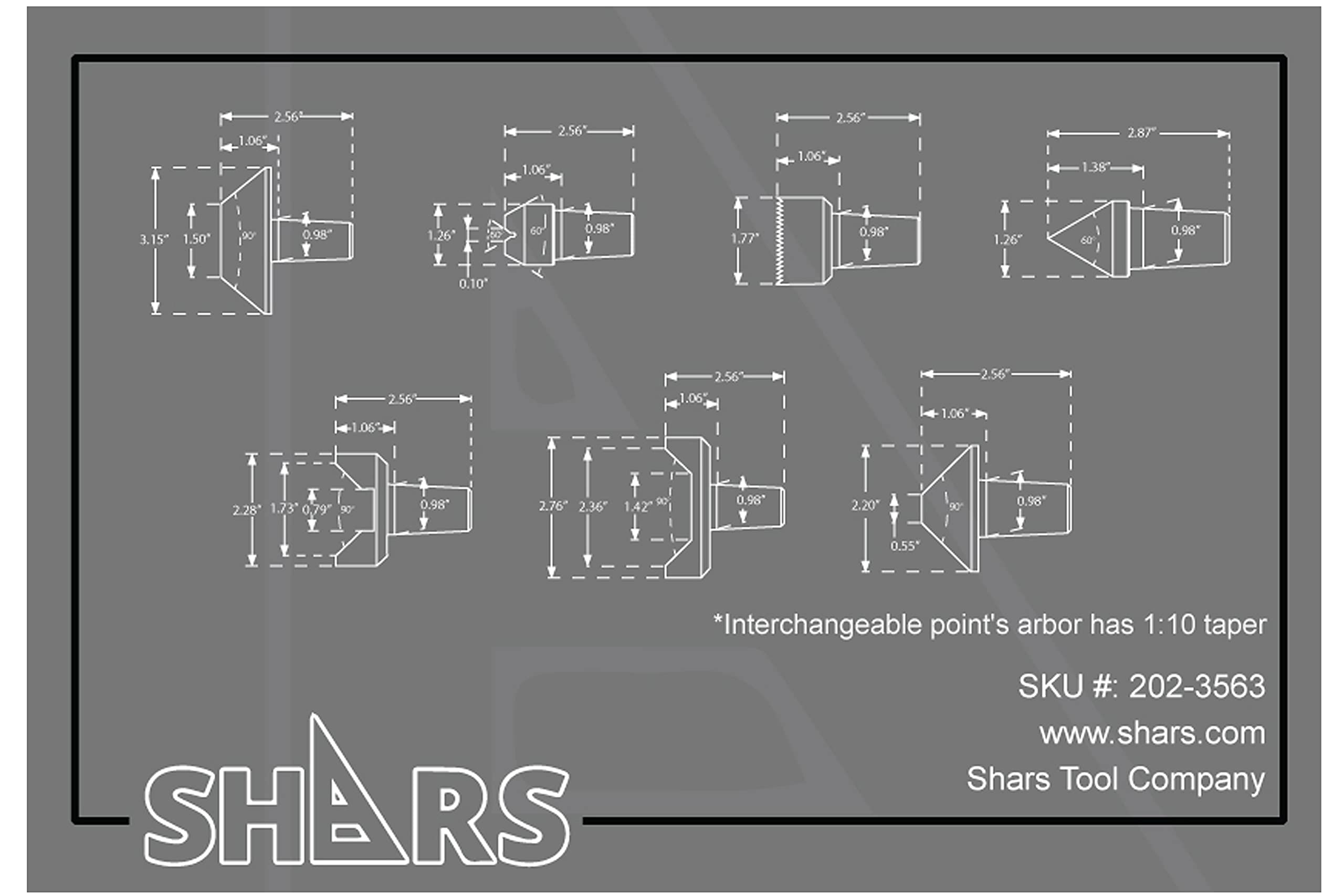

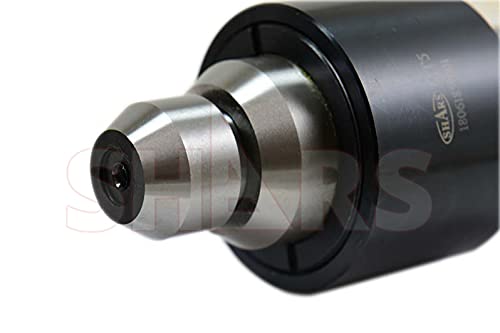

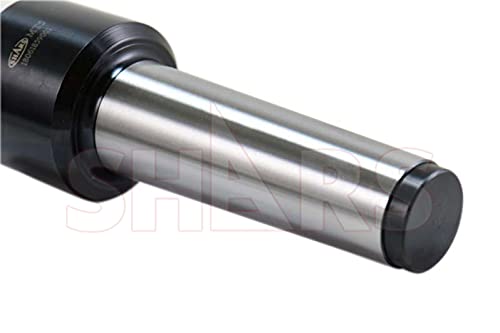

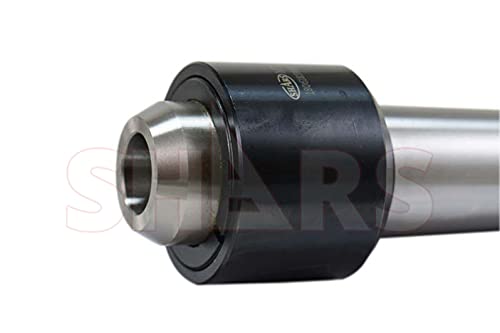

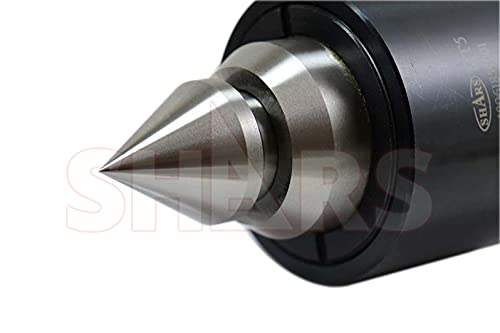

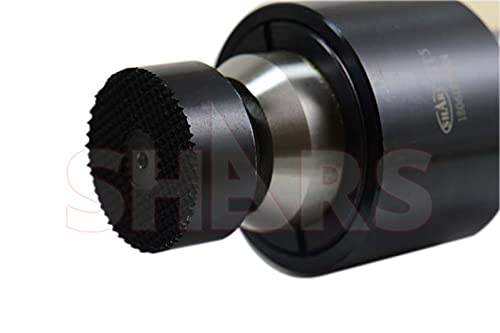

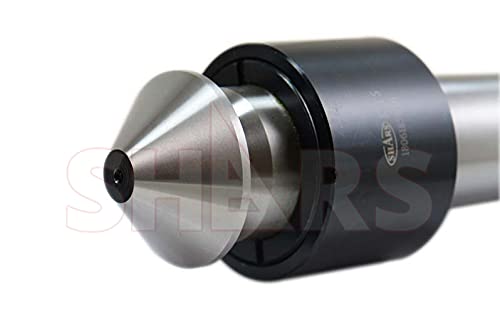

Measurement Shars Tool 5MT High Performance Heavy Duty CNC Interchangeable Live Center Set Part No. 202-3563Shank Size: Morse Taper 5 Nose Style: Interchangeable NoseThis live center has a combination of needle roll bearing, P5 class ball thrust bearing, and deep groove ball bearing.It's application to medium to high speed machining with heavy duty load on CNC lathe.Adjustable needle roller bearing carry all radial loads while heavy duty ball thrust bearing carry all axial loads.With external shrink sleeve on the needle bearing, the clearance of the needle roller bearing can be adjusted to improve the precision adn service life of the live center.The rotation spindle is made from bearing steel with heat treated to HRc 60+/-2 for high rigidity and wear resistance.Lubricant can be added into the live center body to maintain lubrication on the bearing.Built-in oil seal protects bearing against ingress of coolant, dirt, and swarf. Product Spotlight Extra long spindle point extends into deep groove ball bearing supported shank to effectively improve rotating performance and reduce vibration. Shars 3/8" Indexable Carbide TCMT Insert Turning Tool 5 Pcs Set Shars Center Drill & Countersink Bit Tooling Set #1-5, 60° HSS Shars 3/8" x 6" Indexable Boring Bar with CCMT Insert, Right Hand Shars 5MT Live Center Set Triple Bearing Lathe Medium Duty CNC Shars 5MT Live Center Set High Speed Heavy Duty CNC Interchangeable Nose 7 PCS Shars 5MT Medium Duty Live Center Triple Bearing Lathe Medium Duty CNC Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 17 4.7 out of 5 stars 6 4.8 out of 5 stars 23 — 4.7 out of 5 stars 4 4.4 out of 5 stars 56 Price $31.99$31.99 $11.95$11.95 $27.95$27.95 $138.95$138.95 $279.95$279.95 $73.15$73.15 Order No. 404-1040 404-1358 404-1961 202-3428 202-3545 202-3439 Shars 5" 3 Jaw Adjustable Self Centering Scroll Lathe Chuck 2PC Reversible Jaws Shars 5 inch 3 jaw Self Centering Scroll Lathe Chucks 2 Piece Reversible Jaws Shars 5" 3Jaw Self-Centering Scroll Lathe Chuck Solid Jaws w/1-1/2x8 Back Plate Shars 6" 3 Jaw Adjustable Self Centering Scroll Lathe Chuck 2PCS Reversible Jaws Shars 6" 3 jaw Self Centering Scroll Lathe Chucks 2 Piece Reversible Jaws Shars 6" 3Jaw Self Centering Lathe Chuck w/2 Sets of Jaws With M39x4 Back Plate Buying Options Buying Options Add to Cart Buying Options Add to Cart Add to Cart Customer Reviews — 4.2 out of 5 stars 34 4.1 out of 5 stars 4 3.6 out of 5 stars 9 4.2 out of 5 stars 34 5.0 out of 5 stars 1 Price — no data — no data $149.95$149.95 — no data $151.80$151.80 $169.95$169.95 Order No. 202-6555 202-6299 202-5594-202-6192 202-5463 202-5433 202-5411-202-6215 Shars 3" 3 Jaw Lathe Chucks Precision Self Centering Scroll Solid Jaws Shars 3" 4 Jaw Self Centering Lathe Chuck with 2 Sets Jaw + .003" TIR New Shars 3" 4 Jaw Independent Lathe Chuck Solid Hard Jaws SHARS 4" 4 JAW SELF CENTERING SCROLL LATHE CHUCKS SOLID JAWS Shars 4 Inch 4 Jaw Independent Lathe Chuck Solid Hard Jaws SHARS 4" 3 JAW SELF CENTERING PRECISION CHUCK & 5C ARBOR Add to Cart Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Customer Reviews 5.0 out of 5 stars 4 4.4 out of 5 stars 4 3.8 out of 5 stars 21 4.4 out of 5 stars 4 3.8 out of 5 stars 21 4.6 out of 5 stars 17 Price $111.05$111.05 $126.95$126.95 $96.50$96.50 $125.95$125.95 — no data $115.95$115.95 Order No. 202-5408 202-5471 202-5418 202-5472 202-5419 202-5415
